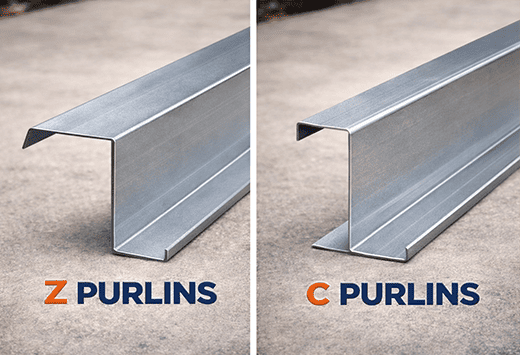

C and Z Purlins are cold-formed steel secondary members used in Pre-Engineered Buildings to support roof and wall sheeting and to transfer loads safely to the primary steel frames. Both sections are factory-formed with high dimensional accuracy and are designed based on actual span, wind load and service requirements
Z purlins are mainly used where continuity and higher structural efficiency are required, as they can be lapped over supports to form a continuous system
C purlins are commonly used for shorter spans and non-continuous framing such as wall girts and edge members
| Material | High tensile steel (G350, G550) |
| Steel Grade | ASTM A572, A36, IS 2062 |
| Coating | Galvanized (Z275, Z450) |
| Thickness | 1.2mm – 3.2mm |
| Width | 100mm – 300mm |
| Flange Width | 40mm – 80mm |
| Lip Size | 15mm – 25mm |
| Length | Customizable |
| Yield Strength | 350MPa – 550MPa |
| Application | Roof purlins, wall girts |
| Shape | Z-shaped (better lapping capability) |
| Material | High tensile steel (G350, G550) |
| Steel Grade | ASTM A36, IS 2062 |
| Coating | Galvanized / Pre-Galvanized |
| Thickness | 1.2mm – 3.0mm |
| Width | 80mm – 300mm |
| Flange Width | 40mm – 80mm |
| Lip Size | 15mm – 25mm |
| Length | Customizable |
| Yield Strength | 250MPa – 450MPa |
| Application | Wall girts, shorter span roofs |
| Shape | C-shaped (non-continuous members) |
Designed for multiple industrial and commercial applications
